WVPSR VIBRATO

The Wilkinson R series is our most comprehensive range of Vibrato bridges. The R series offers many of the upgrades that Trev Wilkinson has conceived to give you the best possible performance in a modern vibrato unit, while still retaining the essence of the original vibrato bridge created in the 1950’s.

R SERIES KEY FEATURES

5 saddle types, Brass, Stainless Steel, Threaded bar, Bent Steel, Wilkinson.3 different knife edges, VS 2 pivot, Wave 2 pivot, 5+1 knife edge.Billet steel block with stagger pattern and deep drill *Total control vibrato arm system *

INNOVATIONS

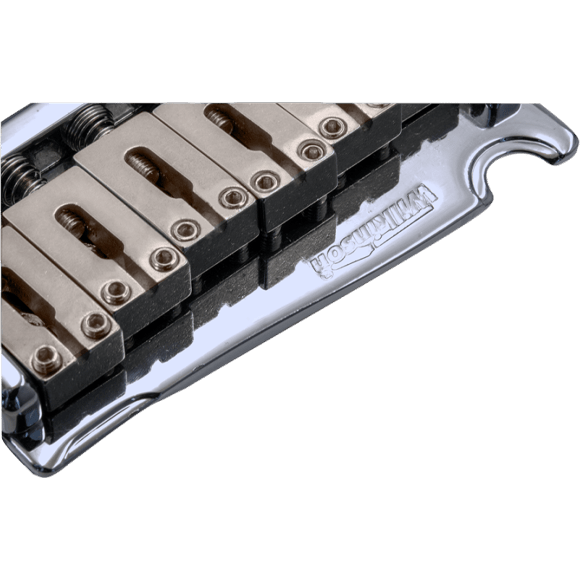

The WVPS model R Series vibrato has many unique features that have been established and proven to aid in tuning stability and tone, the WVPS has six, stainless steel Wilkinson saddles for excellent string separation, superb tone and solid transfer of string energy. Developed on the groundbreaking Wilkinson VSV vibrato the WVPS also features our unique stagger drilling pattern which achieves a more consistent break angle for the strings over the intonation point, this feature combined with our deep drilled billet steel block aids considerably in the goal of creating a much more stable vibrato system and ultimately a more in tune instrument.

TOTAL CONTROL

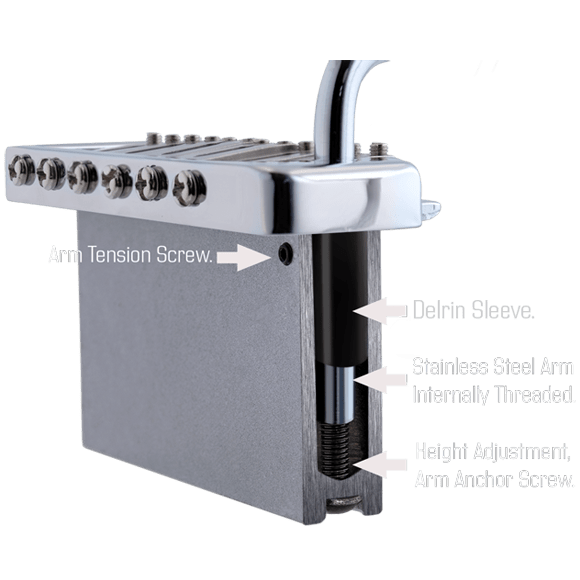

The Total control vibrato arm system is full of Wilkinson developed innovations that offer the player the ability to set the arm tension and arm height perfectly to their preferred feel. The internally threaded stainless-steel arm is anchored at the bottom of the vibrato arm hole by a matching thread screw/bolt, and held perfectly in the delrin sleeve that is inserted into the block and which can be tensioned from the rear of the block, the stability of this system gives the player instantaneous control with no arm lag.

REENGINEERING HISTORY

The knife edge of the traditional vibrato developed by Leo Fender in the early 1950’s is the anchor point of the system. At this point many of the tuning issues associated with the vibrato develop, binding of components, misaligned screws and soft materials are all factors that cause problems and also factors that have caused Trev Wilkinson to continue developing solutions for these issues.On R Series you will find three types of knife edge including our unique 5 + 1 system that was introduced on the VSV vibrato, our Wilkinson wave 2 point system, and our original 2 point VS system that was on the legendary VS100 vibrato and is exclusive to the VS50 IIKR in the r series range.

WILKINSON 2 PIVOT KNIFE EDGE VIBRATO

As on our original ground breaking VS100 vibrato the WVPS R Series Bridge features a two pivot knife edge system. One pivot accurately sets the position of the vibrato and prevents side to side movement with its half moon design. The second pivot is a straight edge which offers virtually friction free operation and the flexibility to handle any discrepancies from inaccurately spaced pivot posts. Both knife edges are hardened to our specific tolerances to offer exceptionally long life, and smooth and reliable playing performance, this is the Wilkinson Wave.

SPECIFICATION

  • Model WVPSR

  • Finish Chrome, Gold, Black

  • Block Material Billet Steel

  • Saddle Material Steel

  • String Spacing 10.80mm

  • Arm Push In, Internally Threaded
