VS100N

ULTIMATE QUALITY & PERFORMANCE

VS100N VIBRATO

The VS100N vibrato is the classic design that was launched in 1986, and the design that stands for quality in all areas.

Conceived and created by Trev Wilkinson, this timeless piece of engineering broke new ground in the field of guitar hardware and along with the legendary Roller Nut established the Wilkinson brand as a premium hardware company that is now over 35 years old, and a company that is still creating innovative and exciting hardware for the modern and vintage guitar player alike.

The VS100N is still the choice for many premium guitar builders, hardly surprising when you consider that thousands of units have been sold and are used and abused by guitar players who require tuning stability everyday!

UNIQUE SADDLE DESIGN

The unique design of the VS100N saddle is instantly recognisable from any other brand and was designed specifically to increase sustain and sound transfer via its saddle clamping mechanism.

Saddles that move under the string rob it of energy as the string struggles to stop the saddle from moving, thereby losing sustain and sound transfer.

Locking the saddles down to the plate transmits all your strings vibration directly to the bridge and into your guitar, releasing all the tone that other bridges can lose.

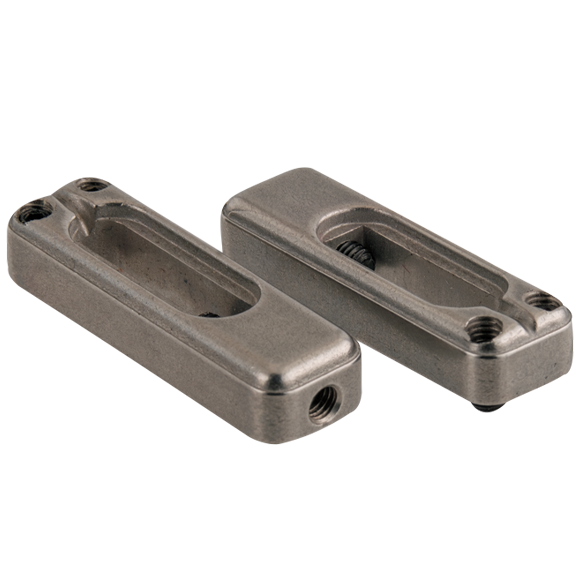

ZINC BLOCK

The vibrato bridge block is the anchor point for both the strings and the adjustment springs in the rear cavity.

Being the central point of the vibrato system it does have a tonal influence, and that tone will ultimately be different dependant on the material used to create the block.

Billet Steel, Aluminium, Brass, Titanium and Zinc have and are used for vibrato blocks and the debate about which is best will no doubt continue for years.

The Wilkinson perspective is that we predominately use billet steel and Zinc for both the tonal properties and also the qualities of machining, in the case of the VS100N we utilise Zinc.

STABLE AND COMPACT

The VS100N utilises our original 2 pivot knife edge for incredible tuning stability, with its half moon locating pivot and alternate straight knife edge offering virtually friction free movement.

Although the VS100N is very compact it still has plenty of movement in each saddle for perfect intonation of the players personal string gauge, and its recessed string top plate string entry/exit holes ensure that string breakage is drastically reduced at this critical point where the string is at its greatest tension.

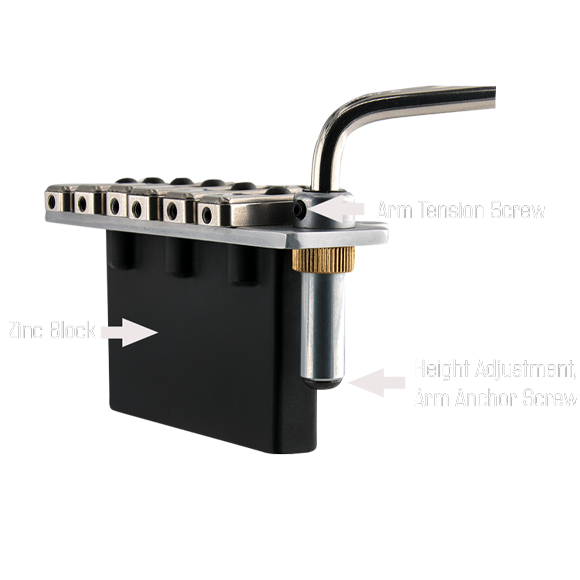

TOTAL CONTROL ARM SYSTEM

The Total control vibrato arm system is full of Wilkinson developed innovations that offer the player the ability to set the arm tension and arm height perfectly to their preferred feel. The internally threaded stainless-steel arm is anchored at the bottom of the vibrato arm assembly by a matching thread screw/bolt and held perfectly in the neoprene sleeve that is inserted into the assembly and which can be tensioned from a screw in the top collar of the assembly, the stability of this system gives the player instantaneous control with no arm lag.

SPECIFICATION

  • Model VS100, VS100LH

  • Finishes Honed Chrome Satin
    Honed Gold Satin
    Honed Black Satin
    Honed Cosmo Black

  • Block Material Zamak 3

  • Saddle Material Stainless Steel

  • String Spacing 10.80mm
